Heat sinks & passive cooling
Efficient heat dissipation without moving parts
Passive cooling relies on natural heat transfer through heat conduction and heat transfer, without fans or other moving components. Heat sinks are the most common form of passive cooling and are used to dissipate heat from electronic components to the ambient air in a reliable and energy-efficient manner.
This type of cooling is particularly suitable in applications where low noise, high reliability and minimal maintenance are essential.
How do heat sinks work?
Heat sinks increase the effective surface area around a heat-generating component. Heat is conducted from the component through the heat sink and released to the environment via natural air circulation. The design, choice of materials and surface structure determine the effectiveness of the cooling.
Advantages of passive cooling
- Completely silent operation
- No energy consumption for cooling
- Very high reliability (no moving parts)
- Long lifetime and minimal maintenance
- Ideal for demanding and sensitive environments
Materials and surface treatment
- Aluminium - lightweight, cost-effective and very common
- Copper - high thermal conductivity for more demanding applications
Surface treatments such as anodising or black paint can improve both corrosion protection and heat release.
The right heat sink for the right application
The choice of heat sink is influenced by:
- Power loss and permissible component temperature
- Mounting method and available space
- Ambient temperature and airflow
- Sound level and maintenance requirements
From standard profiles to customised heat sinks for demanding applications, Swelex helps you size and choose the right solution.
What we offer
All electronic devices generate heat and with increasing performance, heat generation increases. If the heat is not adequately dissipated, this can lead to overheating of the device, up to a complete system failure. Heat sinks manage the heat management of electronic devices. Heat sinks are made of materials with good thermal conductivity, such as aluminium or copper. They increase the surface area over which the device can dissipate heat. Therefore, the temperature can be reduced and overheating and resulting damage effectively prevented. The efficient heat dissipation by means of heat sinks helps to avoid possible system failures.

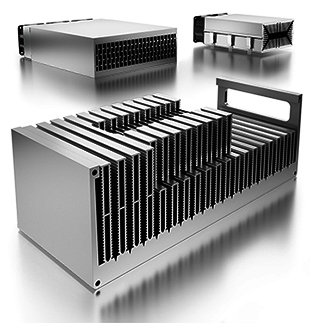

At Swelex you can get the heat sinks directly from the manufacturer. All heat sinks can be supplied with optional mounting materials. We supply standard units in different sizes, designs and installation variants. From profile and fluid heat sinks to fan coolers and finger-shaped heat sinks up to heat sinks in round, flat, angled or fin shape. We also have special LED heat sinks for LED-powered lamps in our range. On request, we manufacture special formats according to your individual requirements.
