Side channel blowers, compressors & vacuum solutions
Side channel blowers, compressors and vacuum solutions are used when standard fans are not enough to create high pressure, directional airflow or vacuum in industrial and technical applications. These fans are particularly suited to systems where air needs to be transported through ducts, filters or process equipment with high precision.
Swelex offers a complete range of side channel blowers, compressors and vacuum solutions, with high performance and robust construction for industrial, commercial and harsh environments.
Side channel blowers
Side channel blowers deliver high pressure and constant airflow, making them ideal for applications where standard blowers are not enough. They handle resistance in ducts, filters and process equipment with high precision and offer energy-efficient operation, robust construction and long service life. Side channel blowers can be used for both compressed air and vacuum applications and are available in a range of sizes and designs for industrial and commercial environments.
FPZ-MOR Side channel blower
- Flows up to 2400 m³/h in vacuum & pressure.
- Pressure range from -450 mbar (vacuum) to +650 mbar (pressure).
- IE3-rated motor
- Quiet operation and low service requirements
- Available in single or two-stage versions.
- Robust construction for continuous operation.
FPZ EVO Side channel blower
- Smartwave technology for reduced noise.
- Lower perceived noise level.
- Energy efficient construction.
- Maintenance-free operation.
- Developed in line with Industry 5.0 and focus on sustainability.
- Robust design for continuous operation.
FPZ MOR K03 Side channel blower
- Suitable for frequency control with IE3 motor.
- Quiet operation.
- Maintenance-free construction.
- Capacity up to 89 m³/h in vacuum and pressure.
- Pressure range: -125 mbar to +150 mbar.
- IP55 rated and robust aluminium construction.
FPZ GOR / GVR Side channel blower
- Two impellers for high airflow, up to 2400 m³/h
- Standard IEC or NEMA motor flange.
- Adaptable to other operating voltages according to IEC 60038.
- Pressure range from -175 mbar to +200 mbar.
- Aluminium construction with IP55 protection.
- Suitable for demanding applications.
FPZ ATEX 2G/3G side channel blower
- ATEX certified for zones 1 and 2.
- Adapted for explosive gas environments.
- Flow 207-364 m³/h with stable and safe operation.
- Quiet running, sound level approx. 58-60 dB(A).
- Robust aluminium alloy fan housing, IP65 rated.
- Possibility of special voltages according to IEC 60038.
Compressors
Reliable compressed air solutions for industry and engineering
Compressors are a key component in many industrial and technical applications where stable pressure, proper air quality and high reliability are essential. Swelex offers a wide range of compressors for both continuous operation and demanding environments - from compact units for OEM solutions to complete systems for industrial production.
Our range covers several technologies and designs, making it possible to choose the right compressor based on pressure, flow, voltage level, noise requirements and application needs. Whether your focus is on energy efficiency, clean air or longevity, we are happy to help you find the right solution.

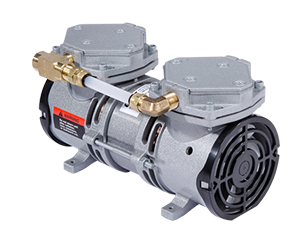

Rocking piston compressors
Compact and efficient compressors with few moving parts, providing high reliability and low maintenance. Rocking piston compressors are particularly suitable for continuous operation and applications where oil-free and stable compressed air is required.
- Maximum pressure: up to 12.07 bar
- Voltages: 12 V, 24 V, 48 V DC and AC versions
- Operation: Oil-free, continuous
- Low noise level and compact size
- Long lifetime and low maintenance
- Suitable for automation, laboratories and medical technology
Diaphragm compressors
Oil-free, compact and robust design providing clean air without contamination. Low noise and low vibration, suitable for laboratories and medical environments. Can be used as a compressor or vacuum pump with low energy consumption and minimal maintenance.
- Maximum pressure: up to 4.2 bar
- Voltages: AC and DC
- Operation: Oil-free, continuous
- Low noise and vibration-free
- Compact and robust design
- Suitable for laboratories, medical technology and clean air applications
Reciprocating compressors
Reciprocating compressors are robust units that can handle demanding industrial environments and applications. With corrosion-resistant materials, oil-free operation and long service intervals, they offer reliable performance during continuous operation. Available with both AC and DC motors for flexible installation in different systems and environments.
- Maximum pressure: up to 10 bar
- Voltages: 12 V, 24 V DC and 110-240 V AC
- Operation: Oil-free, continuous
- Robust and corrosion-resistant construction
- Low noise level for industrial environments
- Suitable for workshops, industry and laboratories
FAQ - Frequently asked questions
What is a side channel blower?
- A side channel blower is a fan that combines high pressure and constant air flow. It is ideal for systems with resistors, filters or ducts, and can be used for both compressed air and vacuum applications.
What is the difference between a side channel blower and a compressor?
- Side channel blowers deliver high airflow at moderate pressure and are energy efficient for continuous operation.
- Compressors provide higher pressure and can be customised for oil-free operation, clean air or harsh industrial environments.
- The choice depends on whether the application requires high pressure, stable flow, clean air or vacuum.
What is meant by vacuum solutions?
- Vacuum solutions are any products that can create negative pressure, such as side channel blowers and some compressors. They are used for suction, handling, packing or laboratory applications where air needs to be drawn out of the system.
Can Swelex deliver customised solutions?
- Yes, we can customise the fan and compressor size, pressure, vacuum capacity, operating voltage and IP rating to match your application.
What types of compressors are there and what are they used for?
- Rocking piston compressors: Oil-free, compact, low maintenance, ideal for continuous operation in laboratories and industry.
- Diaphragm compressors: Oil-free, vibration-free and silent; used where clean air is critical, such as medicine and laboratories.
- Reciprocating compressors: Robust construction, high pressure capacity, suitable for workshop and industry.
How do I choose the right product for my application?
- Identify needs: pressure, flow and air quality.
- Select type: Fan for high airflow, compressor for high pressure, vacuum solution for suction.
- Take into account the operating environment: noise, temperature, humidity and explosion risk.
- Contact Swelex: We help with dimensioning, energy saving and customisation.
